CYC-05AE

CONCRETE DELIVERY SOLUTIONS

Concrete Pumps for Projects of Every Scale

CYON TECH concrete pumps cover pumping capacities from 4–45 m³/h for construction projects of different sizes. Compact structures make transport and jobsite relocation easier, while pipelines can be flexibly moved and extended without complex foundation support.

Diesel and electric configurations reduce manual material handling and improve pouring efficiency. CYON TECH concrete pumps have been exported to the United States, Indonesia, the Philippines and other international markets.

4–45m³/h Output

300 mMax. Horizontal

140 mMax. Vertical

2Drive Options

Request Model Recommendation

DETAILED PARAMETERS

Concrete Pump Model Specifications

Compare drive type, delivery capacity, distance, pipe size, aggregate range and transport dimensions across the complete series.

Model	Drive / Power	Output	Horizontal	Vertical	Pipe	Aggregate	Dimensions	Weight

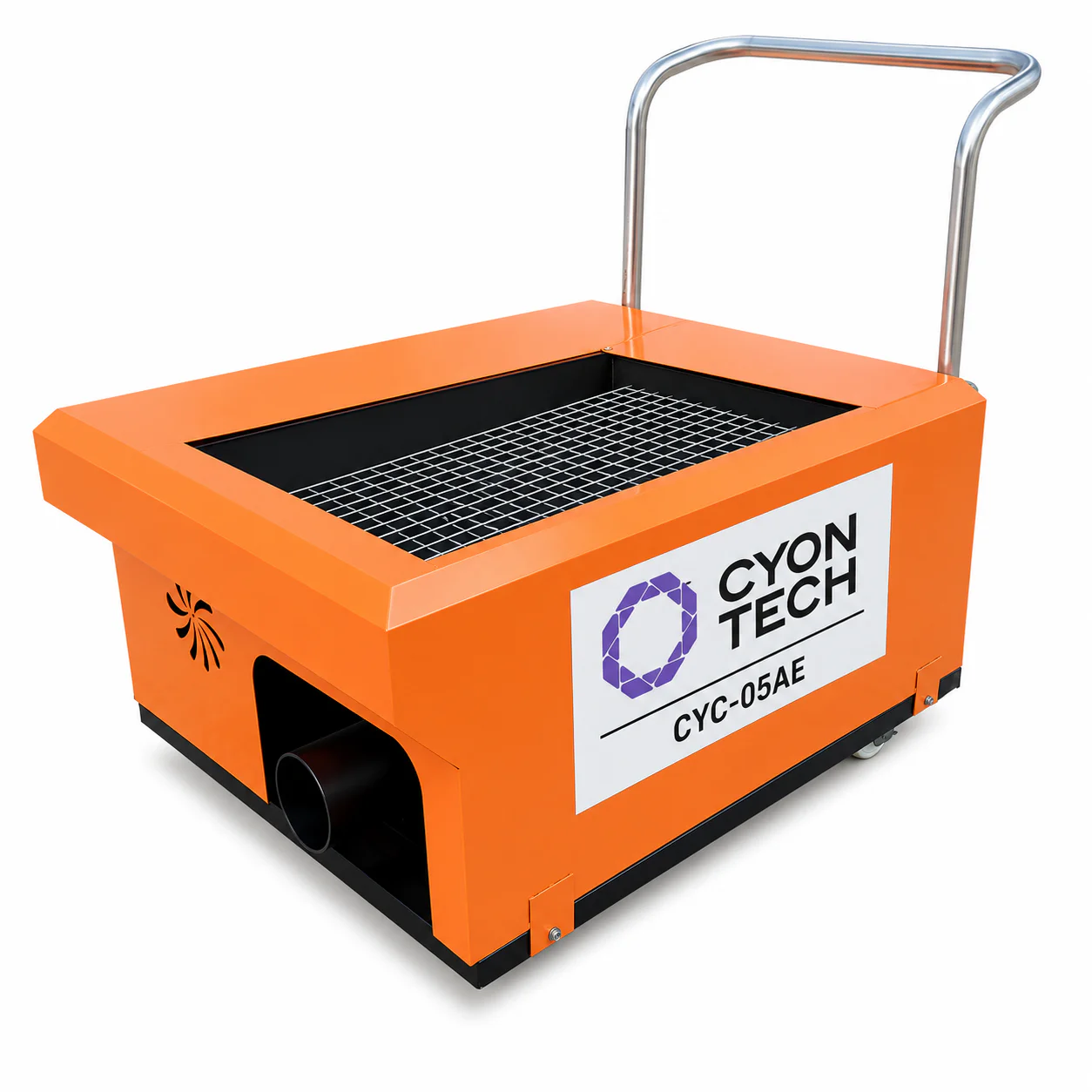

CYC-05AEThe most compact electric screw-pump model, ideal for confined spaces, trial projects and fine-material delivery.	Electric · 5.5 / 7.5 / 11 kW · 220V / 380V	4–7 m³/h	—	5–10 m	—	0–20 mm	950×800×850 mm	130 kg
CYC-15ADCompact diesel concrete pump for mobile jobsites or areas with unstable electricity.	Single-cylinder diesel engine	6–8 m³/h	40–60 m	10–25 m	Ø80 mm	0–25 mm	2200×850×1200 mm	650 kg

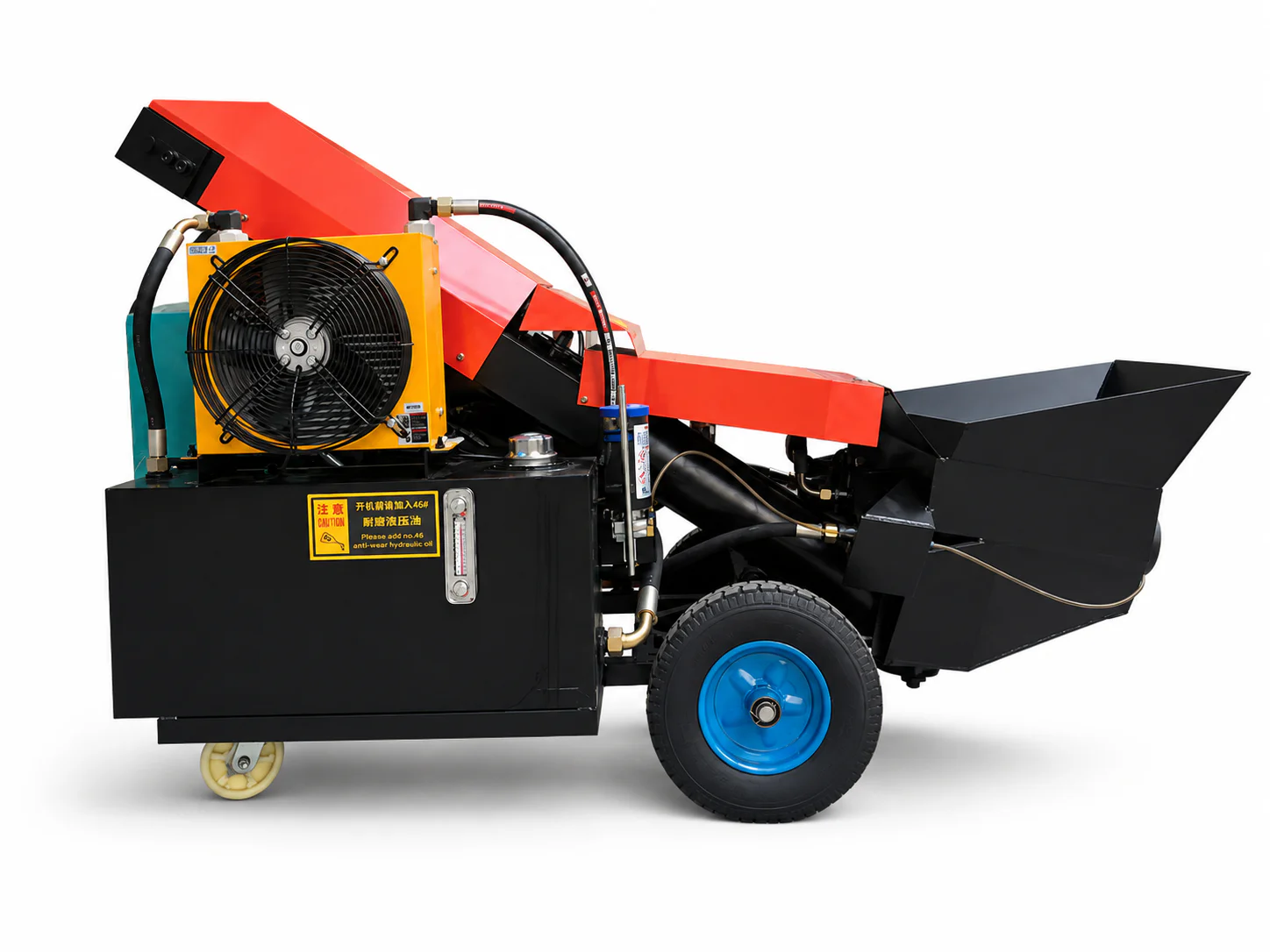

CYC-15AELightweight electric model with stable operation, low noise and convenient daily maintenance.	Electric · 15 kW · 380V	6–8 m³/h	40–60 m	10–25 m	Ø80 mm	0–25 mm	1700×700×1200 mm	480 kg
CYC-20ADMedium-small diesel pump offering higher output and vertical delivery than the 15 series.	4102 diesel engine	8–10 m³/h	50–60 m	30 m	Ø80 mm	5–20 mm	2600×1650×1200 mm	950 kg
CYC-20AEElectric 20-series model balancing pumping capacity, equipment cost and maintenance convenience.	Electric · 22 kW · 380V	8–10 m³/h	50–60 m	30 m	Ø80 mm	5–20 mm	—	700 kg
CYC-30ADA key diesel upgrade for longer distances, higher floors and more continuous pumping demand.	4102 diesel engine	10–12 m³/h	80–100 m	30–50 m	Ø100 mm	10–25 mm	3300×1500×1500 mm	1150 kg

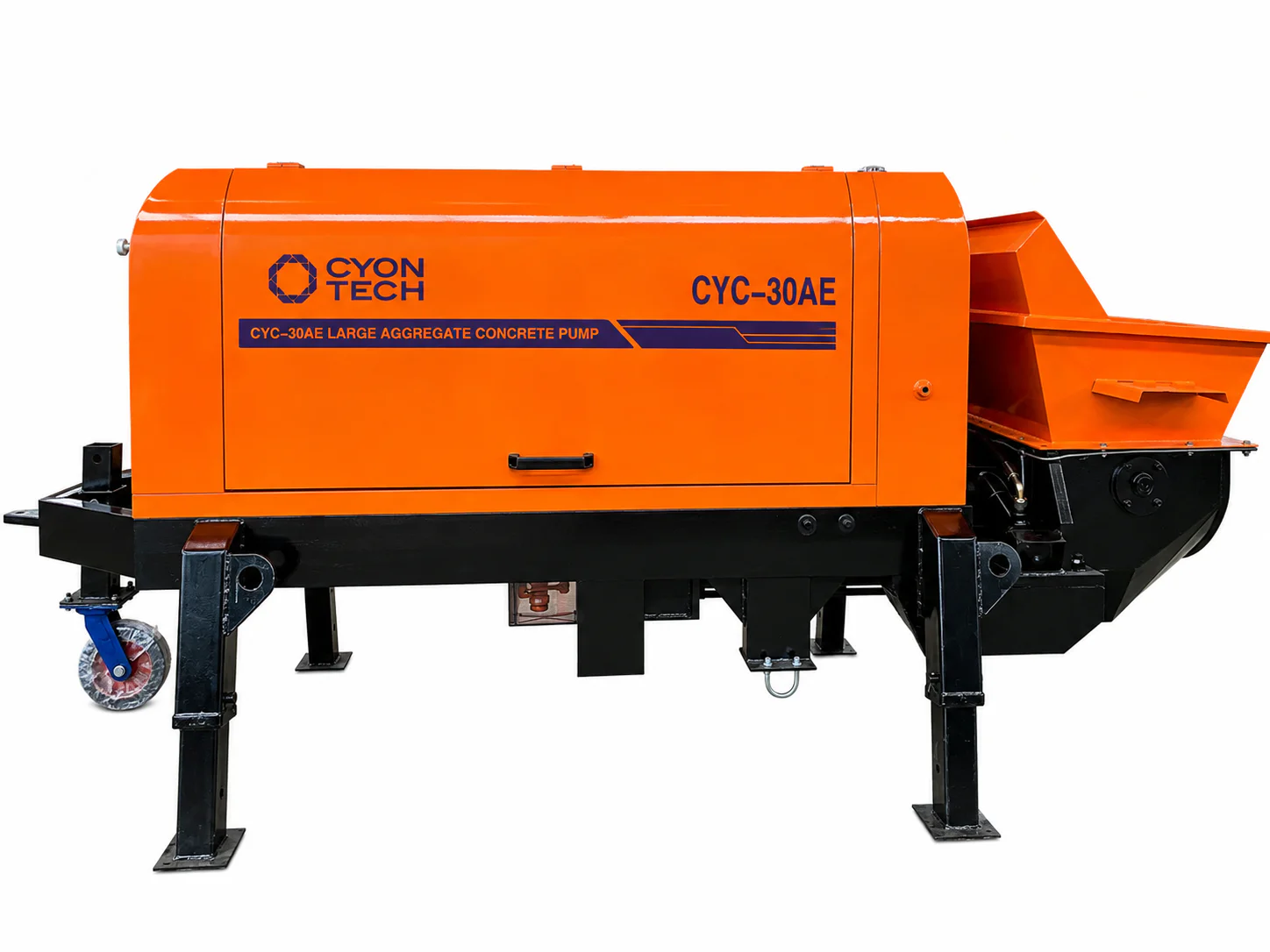

CYC-30AEElectric medium-capacity pump for fixed jobsites, factories and projects with stable power.	Electric · 30 kW · 380V	10–12 m³/h	80–100 m	30–50 m	Ø100 mm	10–25 mm	3000×1400×1500 mm	1000 kg
CYC-40ADHigh-efficiency diesel model for larger pours, longer delivery distances and taller buildings.	4105 Turbo diesel engine	30–35 m³/h	100–200 m	80–100 m	Ø125 mm	10–35 mm	—	2000 kg
CYC-40AEHigh-performance electric pump for continuous work on factories and residential construction.	Electric · 45 kW · 380V	30–35 m³/h	100–200 m	80–100 m	Ø125 mm	10–35 mm	—	1800 kg
CYC-50ADLarge-capacity diesel flagship for high-rise construction, large pours and long-distance delivery.	4108 diesel engine	40–45 m³/h	250–300 m	120–140 m	Ø125 mm	10–40 mm	4500×1600×1700 mm	2600 kg
CYC-50AETop-capacity electric model combining high flow, long distance and high delivery head.	Electric · 55 kW · 380V	40–45 m³/h	250–300 m	120–140 m	Ø125 mm	10–40 mm	—	2300 kg

REAL PROJECT CASES

Concrete Pump Results on Active Jobsites

Two customer projects demonstrate how continuous pipeline delivery can reduce manual handling, lower labor costs and keep structural work moving.

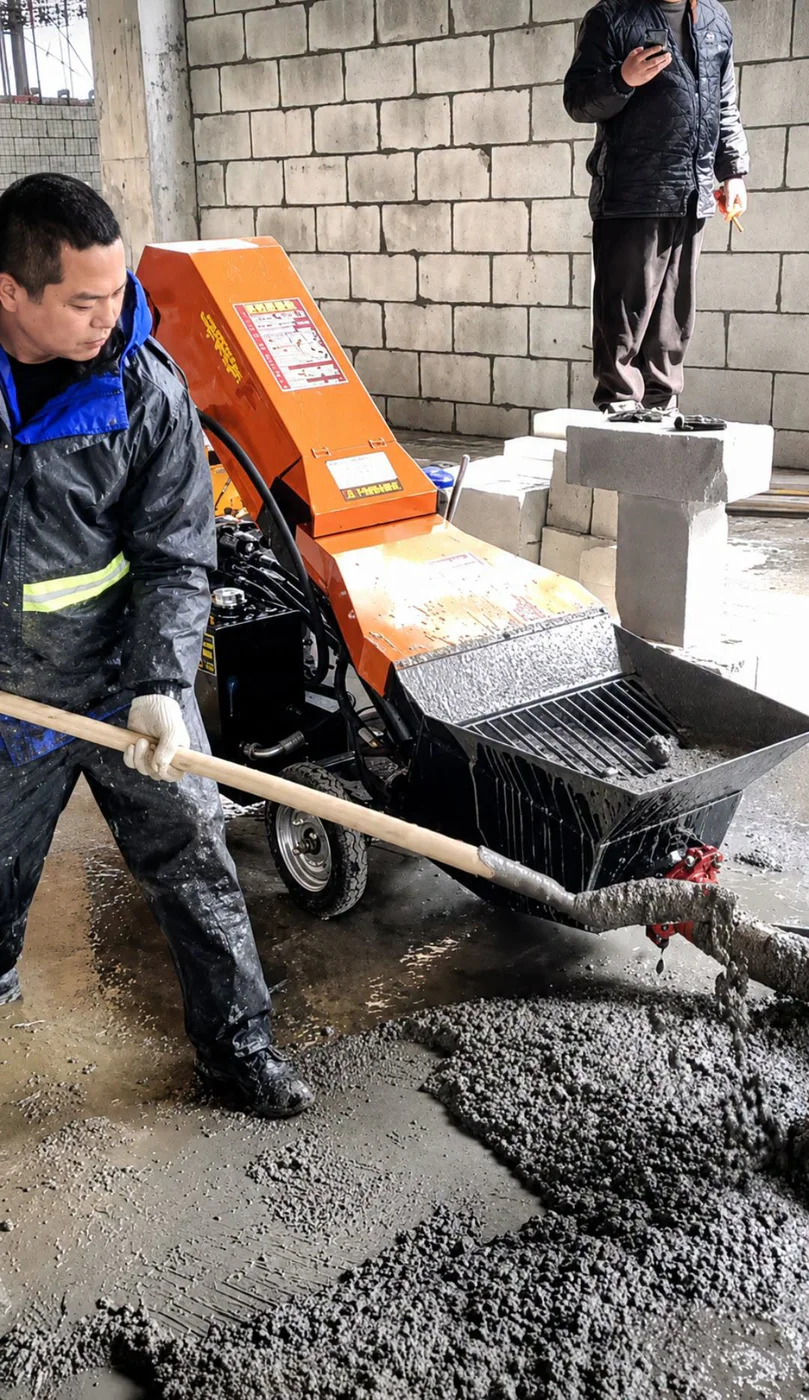

Concrete pump operating on a construction site — **On-site Material Delivery**Compact equipment supports efficient feeding and pumping in confined areas.

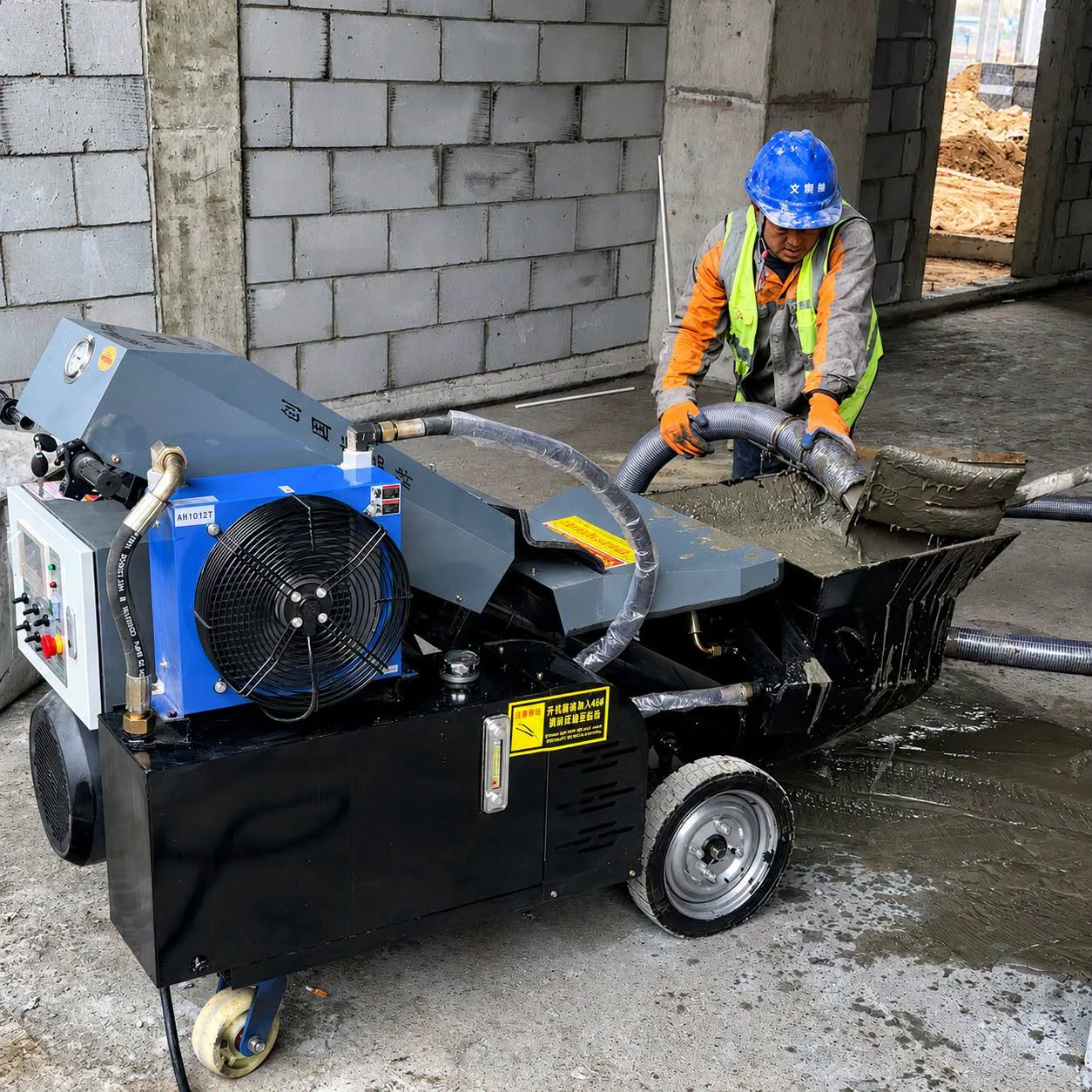

Worker feeding material into a concrete pump — **Continuous Pumping Operation**Stable delivery helps reduce manual handling and improve construction efficiency.

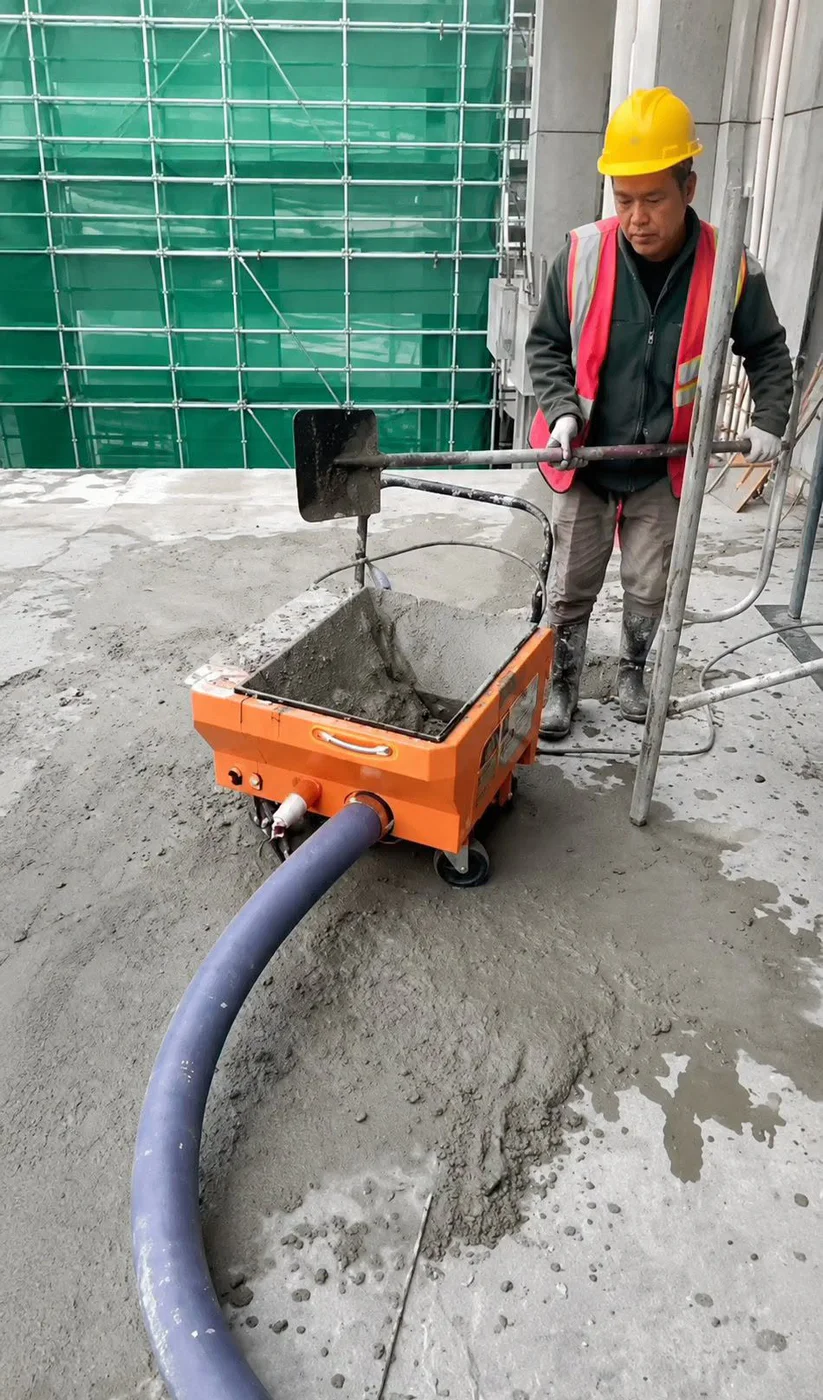

Concrete pump and flexible delivery hose — **Flexible Pipeline Routing**Delivery hoses can be moved and extended according to actual jobsite conditions.

INDONESIACYC-30AD

Residential and Mixed-use Construction

The customer needed to pour foundations, columns, beams and floor slabs, but the mixer truck could not reach deep sections of the jobsite. Concrete had previously been moved repeatedly by wheelbarrow, requiring many workers and slowing each pour as the project area increased.

The diesel-powered CYC-30AD delivered concrete directly through flexible pipelines without relying on site electricity. Its 10–12 m³/h output, 80–100 m horizontal reach and 30–50 m vertical delivery made it suitable for Indonesian residential buildings, Ruko mixed-use properties, small factories and outdoor projects.

After commissioning, fewer workers were needed for transport and transfer. The remaining crew could focus on operation, hose positioning, vibration and leveling. A concrete phase originally expected to take about one month was completed approximately 15 days ahead of schedule, allowing follow-on work to begin earlier.

10–12 m³/h80–100 m Horizontal30–50 m Vertical15 Days Ahead

Less Labor · Lower Labor Cost · 15 Days Ahead of Schedule

PHILIPPINESCYC-40AD

Mid-rise Structural Construction

On a time-sensitive mid-rise project, the customer needed to pour columns, beams and multiple floor slabs. As the structure rose, moving concrete from ground level by lifting equipment, buckets and manual transfer became a major constraint on the schedule.

The customer selected the diesel-powered CYC-40AD with 30–35 m³/h output, 100–200 m horizontal reach, 80–100 m vertical delivery and Ø125 mm pipeline capacity for 10–35 mm aggregate.

Continuous pumping replaced repeated loading, lifting, unloading and secondary handling. The team reduced transport labor, maintained a steadier pouring rhythm and reassigned more workers to reinforcement, formwork and other critical tasks. Lifting equipment was also released for steel, formwork and building materials, improving overall jobsite productivity and relieving schedule pressure.

30–35 m³/h100–200 m Horizontal80–100 m VerticalContinuous Delivery

Higher Pouring Efficiency · Less Manual Transfer · Faster Structural Progress

GLOBAL PARTNER PROGRAM

CYON TECH Dealer Cooperation Policy

Three cooperation levels support market testing, established local sales channels and long-term regional development.

Program Item	ATrial Dealer	BAuthorized Dealer	CCore Regional Dealer
Cooperation Position	Market testing and small-volume sales	Primary local sales partner	Long-term regional strategic partner
Application Requirements	First order 1–2 units; local customer resources; basic product training	First order 3–5 units; stable sales channel; continued annual purchasing; basic after-sales support	Company, warehouse, sales team and service staff; long-term stock; annual target commitment
Dealer Pricing	CYON TECH standard dealer price D1	Additional 3%–5% discount from D1	Additional 6%–10% discount from D1; special pricing for major projects
Inventory	No mandatory stock	Recommended stock of 1–2 popular models	Core models and common spare parts must be stocked
Regional Protection	No exclusive protection	May apply for city or provincial customer protection	May apply for provincial or regional protection; exclusivity available after annual targets are achieved
Customer Protection	Registered dealer-developed customers receive a protection period	Registered customers receive dealer priority	Inquiries from the protected region are prioritized to the core dealer
Demo Machine Support	Purchased at dealer price	Special discount for display machines	Lower display pricing may be requested for showrooms, exhibitions and demonstrations
Logo & Appearance	Available for batch orders	Color, logo, nameplate and packaging customization	Dealer-brand OEM, dual branding and regional packaging
Marketing Support	Photos, videos, specifications and e-catalogs	Local-language ads, videos, posters and social content	Joint local marketing plan plus exhibition, advertising and demo support
Sales Training	Basic product and quotation training	Selection, quotation, sales and application training	Dedicated training on selection, competition, negotiation and project solutions
Technical Training	Online operation guidance	Operation, maintenance and troubleshooting training	Local after-sales engineer training to build service capability
After-sales Response	Remote CYON TECH technical support	Priority technical response	Highest-priority support and dedicated service for major projects
Warranty Support	Standard warranty policy	Standard warranty with priority handling	Extended warranty or tailored policy based on annual purchasing
Spare Parts Policy	Standard dealer parts price	Additional discount on common parts	Highest parts discount and local inventory support
Initial Spare Parts	Standard spare-parts package available	Discounted package supplied with first order	Common wear parts provided free or at preferential price based on order volume
Fault Handling	Remote diagnosis by video and photos	Priority diagnosis and fast parts arrangement	Local dealer handles first response with CYON TECH technical and parts backup
Warranty Repair Cost	Standard warranty terms	Free parts for confirmed quality issues	Parts and reasonable local repair costs may be covered for confirmed quality issues
Parts Dispatch	Standard arrangement	In-stock parts dispatched with priority	Highest priority for core-dealer parts orders
New Product Policy	Open purchasing	Priority trial sales	Priority agency rights and sample testing
Production Scheduling	Standard scheduling	Priority scheduling	Priority production and container loading during peak season
Payment Terms	30%–50% deposit; balance before shipment	Improved terms may be requested after long-term cooperation	Special terms may be requested based on purchase scale and credit history
Project Price Protection	Available on request	Exclusive pricing available for major projects	Factory floor pricing available for major tenders and engineering procurement
Annual Rebate	Not available	Rebate after annual sales target is achieved	Tiered rebates and market incentives based on annual purchasing
Upgrade Mechanism	Upgrade to B after purchase target	Upgrade to C after sales, stock and service requirements	Annual review based on sales, market investment and service quality

Apply to Become a Dealer

FREQUENTLY ASKED QUESTIONS

Questions Before You Order

Clear answers covering supplier capabilities, OEM/ODM, ordering, shipping, training and distributor cooperation.

Are you a manufacturer or a trading company?

We are a construction machinery supplier from China, providing equipment selection, customization, export packaging, international shipping support, spare parts and after-sales technical service.

Can I customize the equipment with my own brand (OEM/ODM)?

Yes. We support OEM/ODM cooperation, including machine color, logo, nameplate, packaging and selected configurations. Customized solutions can also be provided for distributors and bulk orders.

What is your Minimum Order Quantity (MOQ)?

Most models support small-quantity trial orders. New customers and dealers can start with a trial order before expanding to larger-volume cooperation.

How do I choose the right machine for my project?

Tell us your application, required capacity, working conditions, power supply, destination country and budget. Our sales team will recommend a suitable model and configuration.

How do you handle international shipping and logistics?

We can arrange export packaging and provide international shipping solutions according to the destination. Different transportation options can be discussed based on equipment size, quantity and customer requirements.

Will my operators know how to use the machine?

Yes. We provide operation manuals, instructional videos and remote technical guidance. Our team can also assist with installation, operation, daily maintenance and troubleshooting.

What payment terms do you support?

Payment terms depend on the order value, equipment type and cooperation model. Standard orders are normally arranged with a deposit and balance payment before shipment.

Can I become a CYON TECH distributor?

Yes. We welcome distributors and local partners worldwide. Qualified dealers can receive factory pricing, marketing materials, technical training, spare-parts support, customization and regional market protection.
